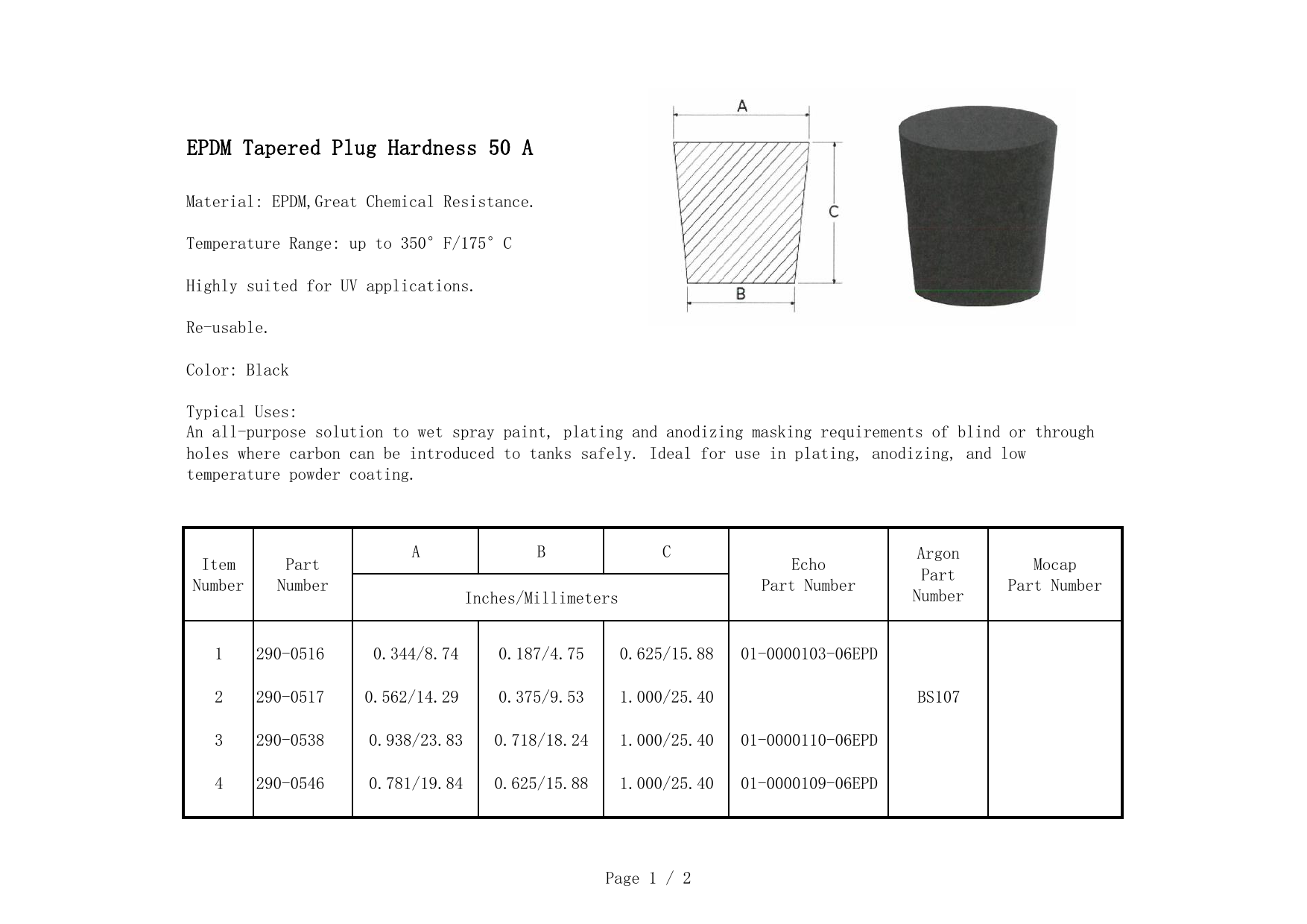

EPDM tapered plug data sheet preview
TECHNICAL DATA SHEETDimensions A / B / C · 16 standard sizes
VIEW ↗
01
01

MASKING · EPDM PLUGS

EPDM Tapered Plugs

SELECTED PART: 01-0000110-06EPD

Reusable tapered plugs for masking threaded and non-threaded holes during plating, anodizing, wet painting and other low-temperature finishing processes.

MATERIALEPDM
MAX TEMP.177°C
HARDNESS50 A
Configure your part
Selected specificationØ 23.83 / 18.24 × 25.40 mm
STANDARD PACK100 PCS
REQUEST PRICE
REQUEST A SAMPLE →

01 / TECHNICAL SPECIFICATIONS

Designed for a secure,
repeatable masking seal.

Part number01-0000110-06EPD
MaterialEPDM
Top diameter (A)0.938 in / 23.83 mm
Bottom diameter (B)0.718 in / 18.24 mm
Length (C)1.000 in / 25.40 mm
Standard pack100 pcs
Temperature ratingUp to 350°F / 177°C
ColorBlack

02 / WHY EPDM

Efficient sealing for
industrial finishing.

01Tapered profile fits a range of hole diameters

02Compressible rubber supports a tight seal

03Chemical, weather and UV resistant

04Reusable across suitable process cycles

03 / RECOMMENDED PROCESSES

PLATING01
ANODIZING02
WET PAINT03
LOW-TEMP COATING04
OEM / ODM CASECONCEPT MODEL

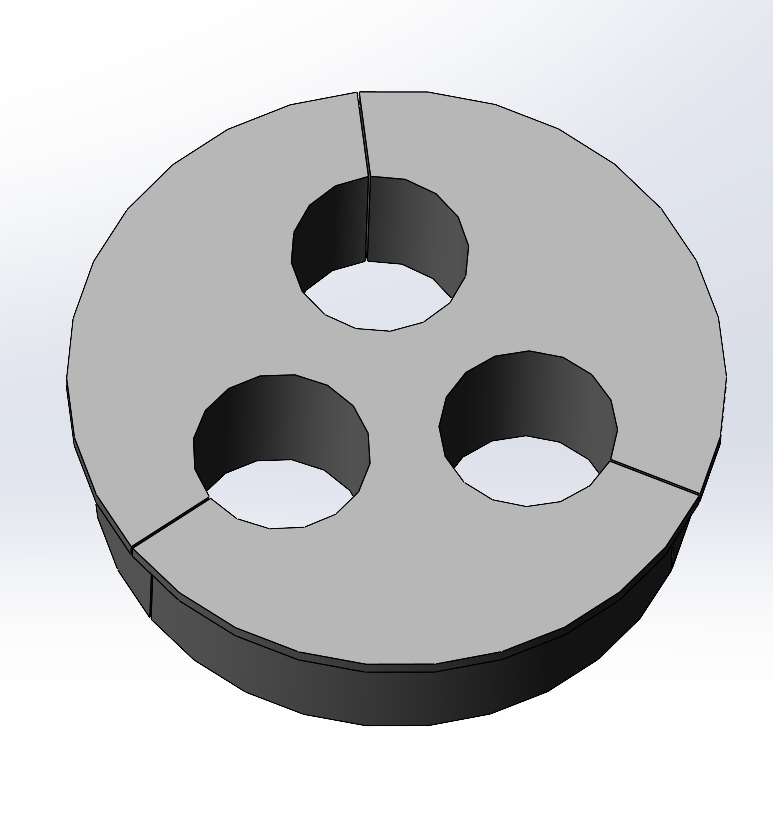

CAD concept of a custom three-hole EPDM component
3-HOLE MOLDED COMPONENTDESIGN REVIEW / 01

CUSTOM DEVELOPMENT

From CAD concept
to molded part.

This multi-hole component illustrates how we evaluate non-standard geometry before tooling. Hole position, split lines, thickness, hardness and operating conditions can all be developed around your assembly.

01Drawing review
02Material selection
03Prototype & approval
04Batch production
REQUEST A CUSTOM PART QUOTE →
